FIELDY 2 DEVICE GUIDE

1. What’s in the Box

Fieldy wearable device
Stainless steel carabiner clip / necklace attachment
USB-C charging cable
Quick start guide (QR code card)

2. Device Overview

2.1 Charging Your Device

Connect the USB-C cable to the port on the bottom of the device.
Plug into any USB power source (computer, wall brick, or power bank).
LED Status: 🟢 Green = Full/Good, 🟡 Yellow = 6-10 hours left, 🔴 Red = Charge immediately. Note: Device can be used while charging.

2.2 Powering On/Off

Power On: Press and hold the button for 2 seconds. The LED will pulsate Blue (pairing mode).
Power Off: Press and hold the button for 2 seconds while the device is on.

2.3 Connection Check

Single click the device button:

1 White Blink: Connected to your phone.
3 White Blinks: Disconnected (Open the app to reconnect).

3. LED Indicators

Standard LED Colors (Firmware 2.3.0+)

LED Color	Meaning
Pulsating Blue	Pairing mode / Searching for phone (Default after Factory Reset)
Steady White	Connected and Operational
Blinking White	Device Muted OR Offline Storage Full
Steady Red	Battery Critical (<5%)

Battery LED Status (While Charging)

LED Color	Battery Level
Green	Full / Good (80%+)
Yellow	6-10 hours left
Red	Charge immediately

4. Wearing Your Fieldy

Best Practices for Audio Quality:

Placement: Wear the device with the LED facing outward (where the antenna is located).
Clothing: Avoid wearing under heavy jackets or thick scarves which may muffle the microphone.
Environment: Fieldy works best in quiet to moderate noise environments.

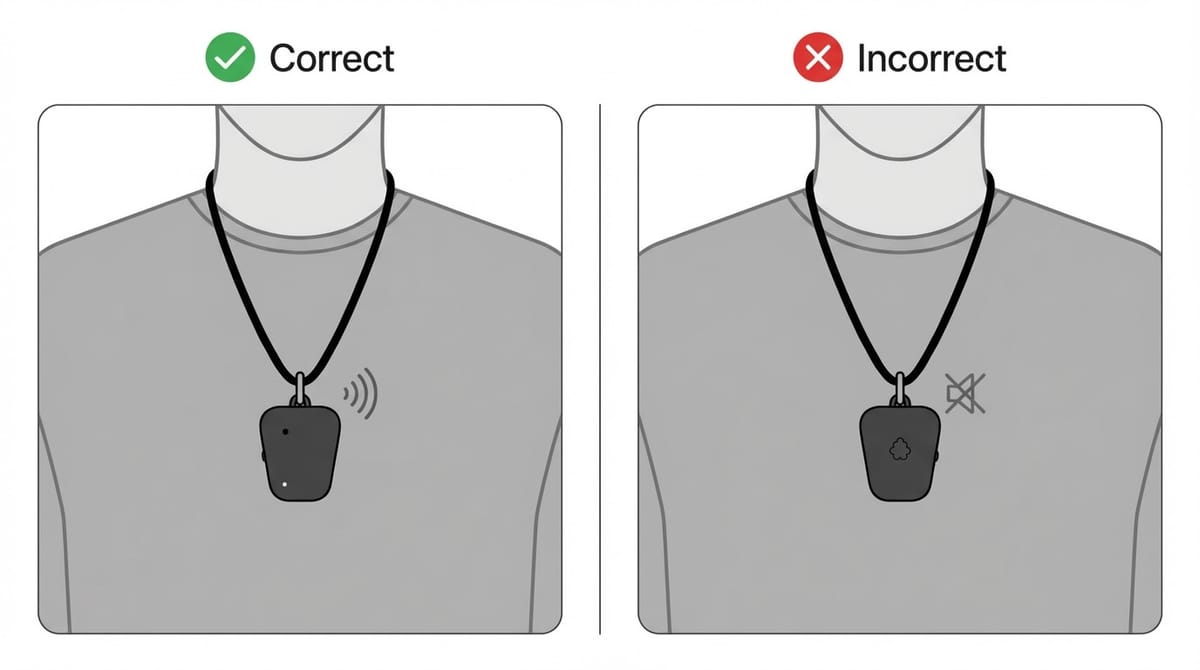

How to wear Fieldy

5. Offline Storage

If you leave your phone behind, Fieldy stores up to 3 hours of audio locally on the device.

Recordings sync automatically when you return to Bluetooth range
Keep within 30 feet of your phone for best connectivity
The app must be open with an internet connection to sync

6. Specifications

Feature	Specification
Dimensions	37 x 25 x 11 mm
Weight	25 grams
Battery Life	~3 days typical use
Charging	USB-C (Full charge in ~90 mins)
Offline Storage	Up to 3 hours of audio
Security	HIPAA-compliant, E2E Encryption

7. Troubleshooting

Device Won’t Turn On

Charge the device fully using a different cable/outlet to rule out power issues.
Press and hold the button for 2 seconds.
If unresponsive, perform a Power Reset: Hold the button for 10 seconds.

Factory Reset (Pairing Clear)

Use this to wipe Bluetooth information and return to pairing mode:

A single click followed by an immediate 10 second long press will factory reset. Note: If the LED returns to White instead of Blue, repeat the sequence.

Warning: This should be used as a last resort. Fieldy will wipe Bluetooth pairing information with your phone. You will need to forget Fieldy from your phone’s Bluetooth settings before re-pairing.

Frequent Disconnections

Ensure the LED is facing outward (where the antenna is located).
Keep the phone within 30 feet.
Check for physical obstructions between device and phone.

8. Support

When to Contact Support:

LED shows colors not listed here (e.g., Purple error light).
Device remains unresponsive after a 10-second power reset.
Physical damage or hardware malfunction.
Help Center: intercom.help/fieldy
Email: hey@fieldy.ai
In-App: Settings > Contact Support
